SFAB2024BDKCE

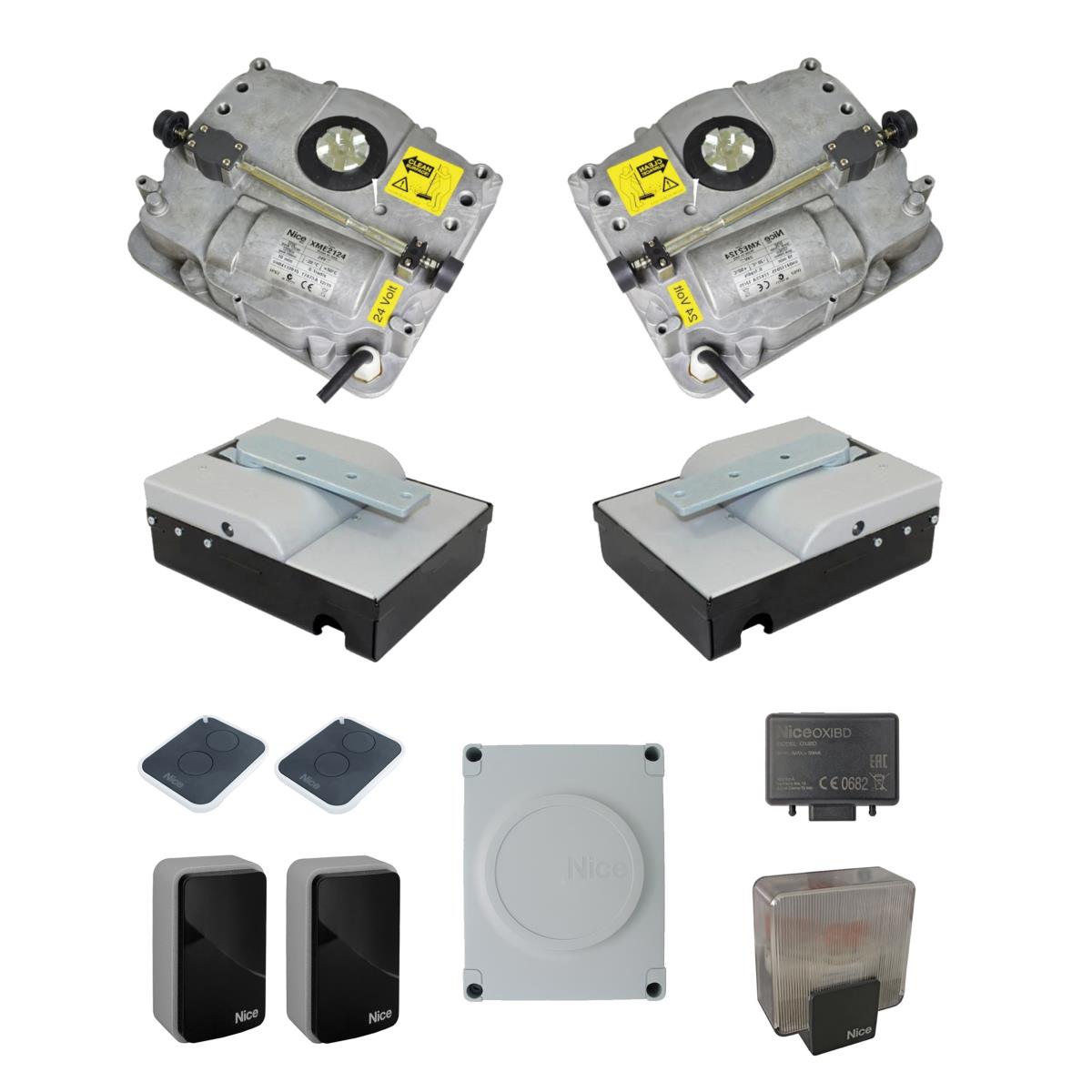

A set of underground drives for a double-leaf gate

Mark: Nice, Max. wing length: 2,3m, Recommended weight of the wing: 125kg, Frequency (MHz): 433, End point: No need end points, Code type: Rolling, Drive slowdown: Drive decelerate before endpoint, Motor power supply: DC 24V, Performance: 120W, Force: 250Nm, Power supply: AC 230V, Type: Underground, Controller: MCA2R10, Protection level: IP67

€3.699,90
without VAT
€4.476,88
with VAT
PCS
Stock availability
SK Krompachy - centrálny sklad > 10
SK Banská Bystrica 0
SK Bratislava R1 0

Contact

For more information, contact our sales representative:

lubomir.petruska@umakov.sk
+421915093533 +393483490444
Description Parameters Download Assembly parts Catalog sheet Mandatory assortment Recommended products Alternative products In sets

Description

Set of propulsion NICE for wing gates into 4m/400kg (Recommended gates parameters 4m/200kg). In pack motors PP7024, PP7224, electronics POA1, receiver OXI, 2x latching. Need for mechanical end stops.

Parameters

Mark
Information about producer of product
Nice
Max. wing length
Maximum wing length for the given drive
2,3m
Recommended weight of the wing
KRÍDLO
125kg
Drive slowdown
Drive decelerate before endpoint
Type
TYP
Underground
Frequency (MHz)
Určuje frekvenciu ovládača a riadiacej elektroniky.
433
End point
No need end points
Code type
KÓD
Rolling
Power supply
Drive-unit power supply
AC 230V
Motor power supply
Drive-unit power supply
DC 24V
Performance
120W
Force
250Nm
Controller
MCA2R10
Protection level
IP67

Download

PDF
Document for download
PDF
Manual – full version

Assembly parts

Diaľkový ovládač NICE ONE ERA dvojkanálový rolling

Remote control NICE ONE ERA 2 channels rolling cod ON-2E

2 pcs
Mark
Nice
Frequency (MHz)
433
Code type
Rolling
Fotobunka na omietku ERA -Medium do 30m

Photocell for plaster montage - do 30m EPM

1 pcs
Mark
Came
Power supply
12-24V AC/DC
Protection level
IP44
LED majak so zabud. anténou 12V - 24V

LED flashlight with integrated antenna 12 - 24V ELDC

1 pcs
Mark
Nice
Skrinka s elektronikou MCA2 pre WINGO2024,3524

NICE WINGO220 control unit MC424

1 pcs
Mark
Nice
Prijímač obojsmerný 4-kanálový NICE

Receiver 4- canals NICE ONE OXIBD

1 pcs
Mark
Nice
Frequency (MHz)
433
Code type
Rolling

Catalog

Recommended products

Záves pre ťažké brány (vrchný+spodný) D44 Záves pre ťažké brány (vrchný+spodný) D44

Hinge for heavy gates (top+bottom), D44 D4/52

Material
Steel
Surface finish
Galvanized
Weight of gate Gmax/Goptimal (kg)
250
€44,99
without VAT
€54,44 with VAT
In stock (723 units)
PCS
Alternatives
Related products
Technical info
Záves pre ťažké brány (vrchný+spodný), D50. Záves pre ťažké brány (vrchný+spodný), D50.

Hinge for heavy gates (top+bottom), D50 D4/52-D50

Material
Steel
Surface finish
Galvanized
Weight of gate Gmax/Goptimal (kg)
400
€57,76
without VAT
€69,89 with VAT
In stock (1195 units)
PCS
Záves pre ťažké brány (vrchný+spodný) s kotviacou prírubou D40

Hinge for heavy gates (top+bottom) with anchoring flange, D40 D4/52P-D40

Material
Steel
Surface finish
Galvanized
Weight of gate Gmax/Goptimal (kg)
300
€81,77
without VAT
€98,94 with VAT
In stock (26 units)
PCS
Konzola pre záves D4/52

Bracket for hinge D4/52 D4/52-K

Material
Steel
Surface finish
Galvanized
€9,09
without VAT
€11,00 with VAT
In stock (100 units)
PCS
Čap závesu do JP 30x30mm, D30mm Čap závesu do JP 30x30mm, D30mm

Gate pin for profile 30x30mm, D30mm D4/45T-30

Material
Steel
Surface finish
Natural
€12,30
without VAT
€14,88 with VAT
In stock (86 units)
PCS
Technical info
Záves nastav.osový s kotviacou prírubou M20-Zn, 80 Záves nastav.osový s kotviacou prírubou M20-Zn, 80

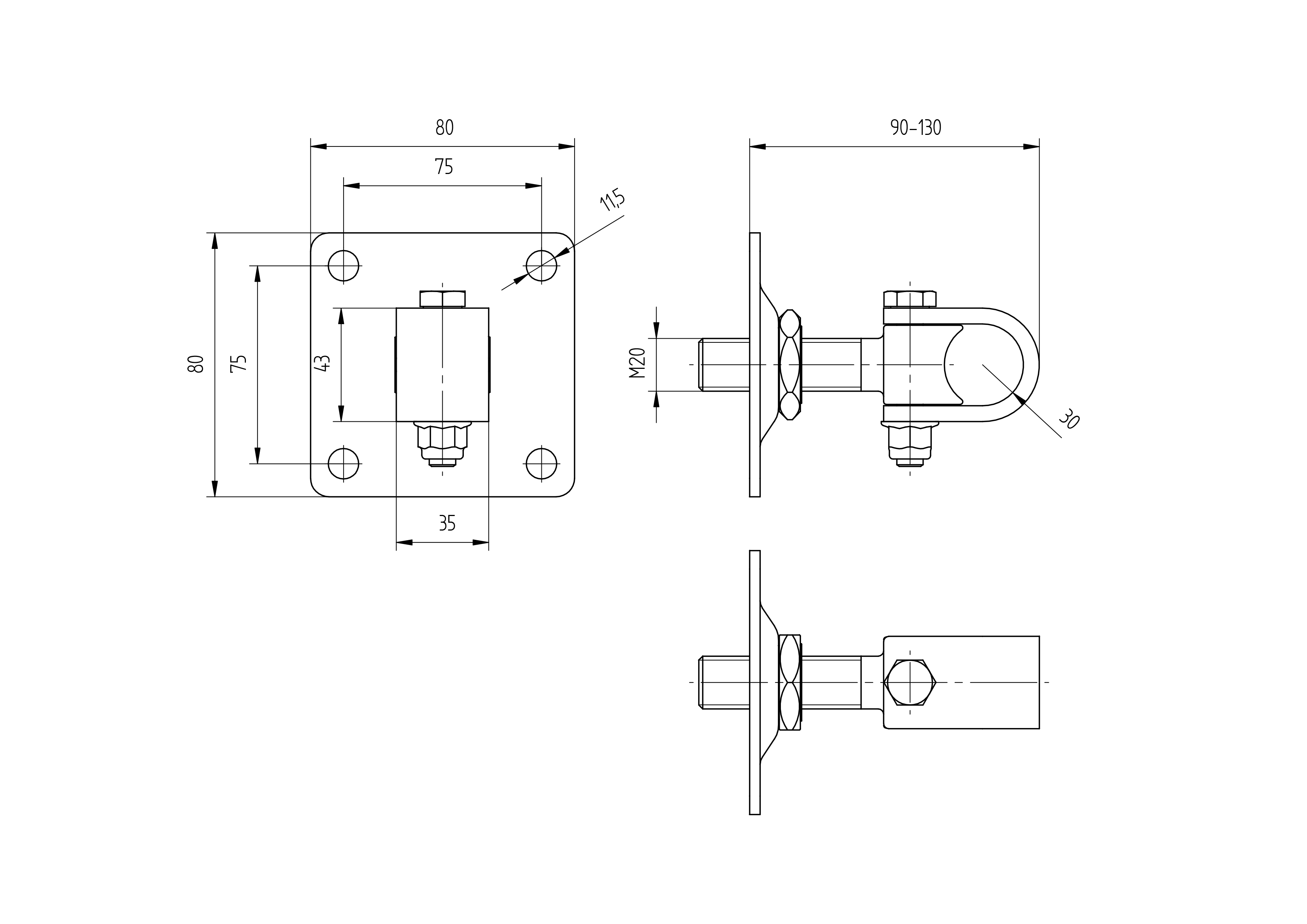

Adjustable hinge with anchor flange M20-Zn, 80 D4/58-M20
