MFAB-ZKIT

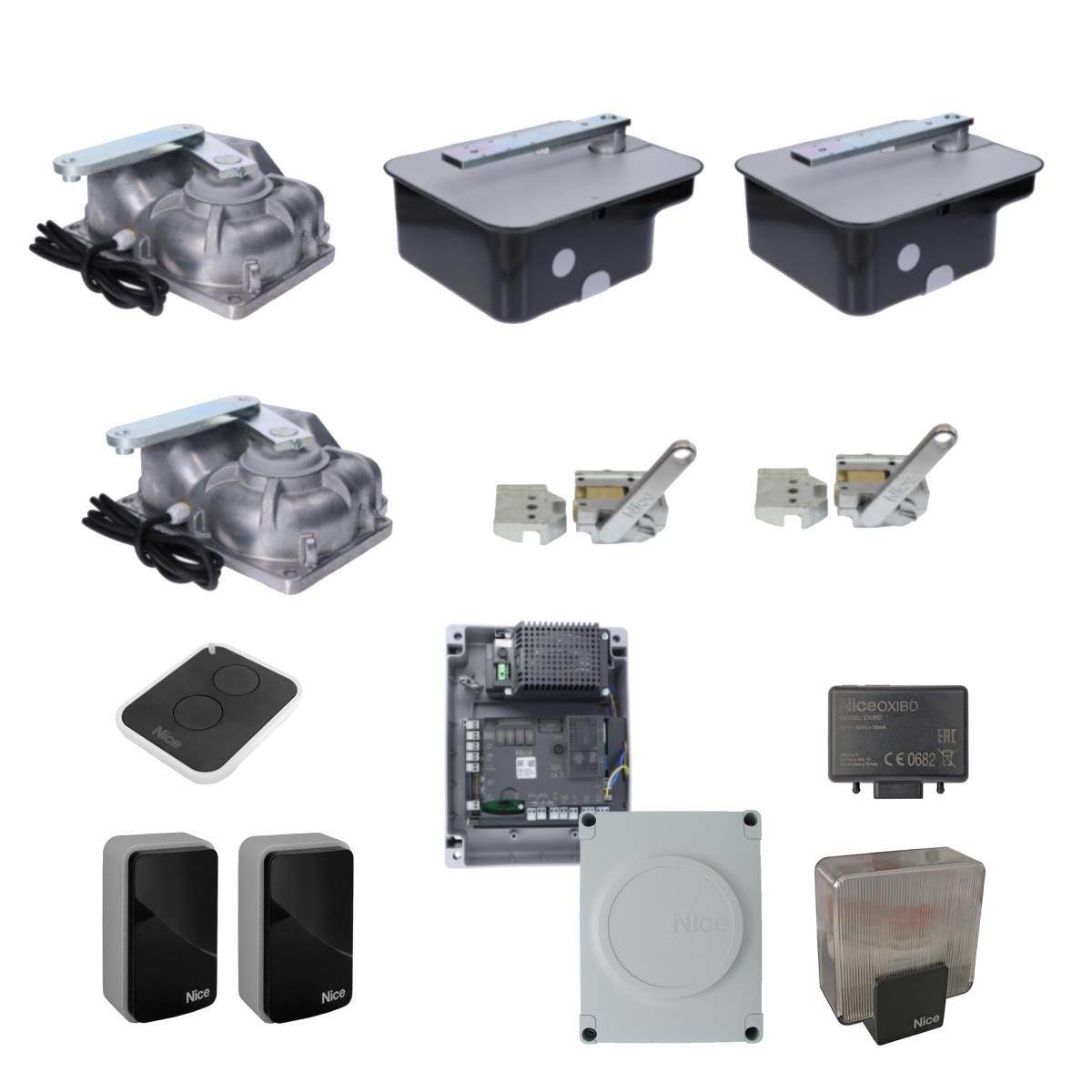

Nice underground drive for double-leaf gate, set with photocells

Mark: Nice, Max. wing length: 3m, Recommended weight of the wing: 225kg, Frequency (MHz): 433, End point: No need end points, Code type: Rolling, Drive slowdown: Drive decelerate before endpoint, Motor power supply: DC 24V, Performance: 120W, Force: 250Nm, Power supply: AC 230V, Type: Underground, Controller: MCA1R10, Protection level: IP67, Encoder: Áno

€4.844,94
without VAT
€5.862,38
with VAT
SET
Stock availability
SK Krompachy - centrálny sklad > 10
SK Banská Bystrica 0
SK Bratislava R1 0

Contact

For more information, contact our sales representative:

lubomir.petruska@umakov.sk
+421915093533 +393483490444
Description Parameters Download Assembly parts Catalog sheet Mandatory assortment Recommended products Alternative products In sets

Description

Two types: ME3024 drive with 24 V motor for intensive work. No welding of covers allowing increased resistance and strength: new one-piece extruded boxes, made of stainless steel (MECX), ideal for use in extreme conditions and in a new (cataphoretic) finish (MECF), very resistant to corrosion, both with a mechanical opening stop. Reliable and robust: motors are made of durable internal components made of steel and bronze alloys. New body - die-cast aluminum, hermetic IP67. Maximum freedom of choice: unlocking from the inside and outside, two models: unlocking with key or lever, freely connectable and easy to activate with one hand. Easy to use: standard opening angle max. 110°, optionally 180° when using MEA1.

Parameters

Mark
Information about producer of product
Nice
Max. wing length
Maximum wing length for the given drive
3m
Recommended weight of the wing
KRÍDLO
225kg
Drive slowdown
Drive decelerate before endpoint
Type
TYP
Underground
Frequency (MHz)
Určuje frekvenciu ovládača a riadiacej elektroniky.
433
End point
No need end points
Code type
KÓD
Rolling
Power supply
Drive-unit power supply
AC 230V
Motor power supply
Drive-unit power supply
DC 24V
Performance
120W
Force
250Nm
Controller
MCA1R10
Protection level
IP67
Encoder
Áno

Assembly parts

Nice podzemný pohon pre dvojkrídlovú bránu

Nice underground drive for a double-leaf gate MFAB3024

2 pcs
Mark
Nice
Max. wing length
3m
Recommended weight of the wing
225kg
Základová krabica oceľova pre MFAB Základová krabica oceľova pre MFAB

Steel base box for MFAB MFABBOX

2 pcs
Mark
Nice
End point
Need end point for close position
Odblokovač ramena MECF - NICE

MECF arm releaser - NICE MEA3

2 pcs
Mark
Nice
Skrinka s elektronikou MC824H 24V

NICE electronics box MC824H 24V MC824H

1 pcs
Mark
Nice
Prijímač obojsmerný 4-kanálový NICE

Receiver 4- canals NICE ONE OXIBD

1 pcs
Mark
Nice
Frequency (MHz)
433
Code type
Rolling
Fotobunka na omietku ERA - BLUEBUS do 30m

Photocell for plaster montage - BLUEBUS do 30m EPMB

1 pcs
Mark
Nice
Power supply
BlueBus
Protection level
IP44
Diaľkový ovládač NICE ONE ERA dvojkanálový rolling

Remote control NICE ONE ERA 2 channels rolling cod ON-2E

1 pcs
Mark
Nice
Frequency (MHz)
433
Code type
Rolling
