TOONA4024-LEFT/RIGHT-ZKIT

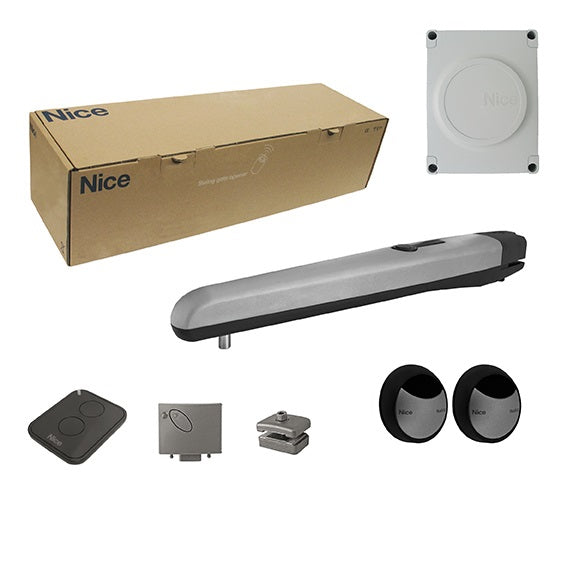

Nice drive for a single-leaf gate, set with photocells

Mark: Nice, Max. wing length: 3m, Recommended weight of the wing: 150kg, Frequency (MHz): 433, End point: Need end point for close position, Code type: Rolling, Parts of the set: TO4024-1x, MC824H-1x, SMXI-1x, FLO2RE-1x MOFB-1pár, PLA13-1x, Drive slowdown: Drive decelerate before endpoint, Motor power supply: DC 24V, Performance: 120W, Force: 1800N, Speed: 0,016 m/s, Power supply: AC 230V, Type: Threaded, Controller: MCA1R10, Protection level: IP44, Encoder: Áno

€1.967,09
without VAT
€2.380,18
with VAT
SET
Stock availability
SK Krompachy - centrálny sklad > 10
SK Banská Bystrica 0
SK Bratislava R1 0

Contact

For more information, contact our sales representative:

lubomir.petruska@umakov.sk
+421915093533 +393483490444
Description Parameters Download Assembly parts Catalog sheet Mandatory assortment Recommended products Alternative products In sets

Parameters

Mark
Information about producer of product
Nice
Max. wing length
Maximum wing length for the given drive
3m
Recommended weight of the wing
KRÍDLO
150kg
Drive slowdown
Drive decelerate before endpoint
Type
TYP
Threaded
Frequency (MHz)
Určuje frekvenciu ovládača a riadiacej elektroniky.
433
End point
Need end point for close position
Code type
KÓD
Rolling
Parts of the set
null
Power supply
Drive-unit power supply
AC 230V
Motor power supply
Drive-unit power supply
DC 24V
Performance
120W
Force
1800N
Speed
0,016 m/s
Controller
MCA1R10
Protection level
IP44
Encoder
Áno

Download

PDF
Manual – short version

Assembly parts

Motor NICE- TOONA do 3m Motor NICE- TOONA do 3m

Engine NICE - TOONA up to 3m TO-4024

1 pcs
Mark
Nice
Max. wing length
3m
Recommended weight of the wing
150kg
Skrinka s elektronikou MC824H 24V

NICE electronics box MC824H 24V MC824H

1 pcs
Mark
Nice
Diaľkový ovládač NICE ERA-FLOR dvojkanálový rollin

Two-channel remote control NICE ERA-FLOR rolling c FLO2RE

1 pcs
Mark
Nice
Frequency (MHz)
433
Code type
Rolling
Prijímač obojsmerný 4-kanálový NICE

Receiver 4- canals NICE ONE OXIBD

1 pcs
Mark
Nice
Frequency (MHz)
433
Code type
Rolling
Fotobunka na omietku ERA - BLUEBUS do 30m

Photocell for plaster montage - BLUEBUS do 30m EPMB

1 pcs
Mark
Nice
Power supply
BlueBus
Protection level
IP44
