GS-304/D-B-991-20/S-B

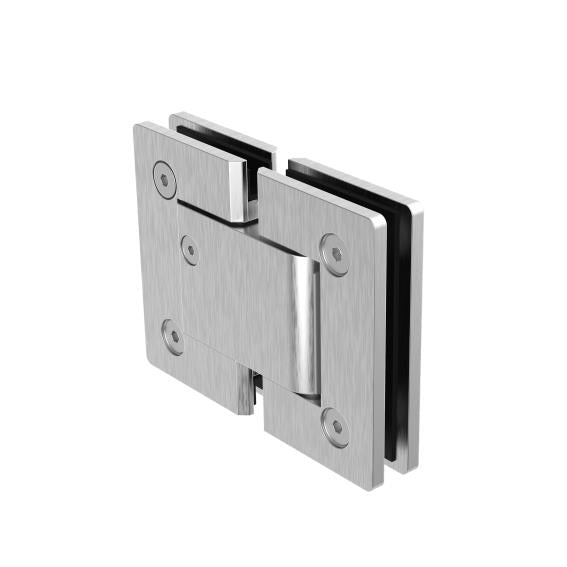

Hinge for glass door AISI304 hydraulic

Material: Stainless steel AISI 304, Surface finish: Satined, Glass t: 8-12, Filling: Glass, Gmax(kg)/2pcs: 50, Anchoring: Glass, Self closing mechanism: Yes, Function stop on angle: +-90°/0°, Glass hole: Yes

€274,93
without VAT
€332,67
with VAT
PCS
Stock availability
SK Krompachy - centrálny sklad > 10
SK Banská Bystrica 0
SK Bratislava R1 0

Contact

For more information, contact our sales representative:

lubomir.petruska@umakov.sk
+421915093533 +393483490444
Description Parameters Download Assembly parts Catalog sheet Mandatory assortment Recommended products Alternative products In sets

Parameters

Záves pre sklenené dvere +/- 90stup. hydraulický
Material
Type of material
Stainless steel AISI 304
Surface finish
Surface finish of product
Satined
Glass t
Determines the thickness of the glass in mm the product is suitable for
8-12
Filling
Určuje použitie podľa rozmeru a tvaru výplne.
Glass
Anchoring
Určuje materiál, na ktorý sa ukotvuje daná položka.
Glass
Gmax(kg)/2pcs
50
Self closing mechanism
Yes
Function stop on angle
+-90°/0°
Glass hole
Yes

Download

PDF

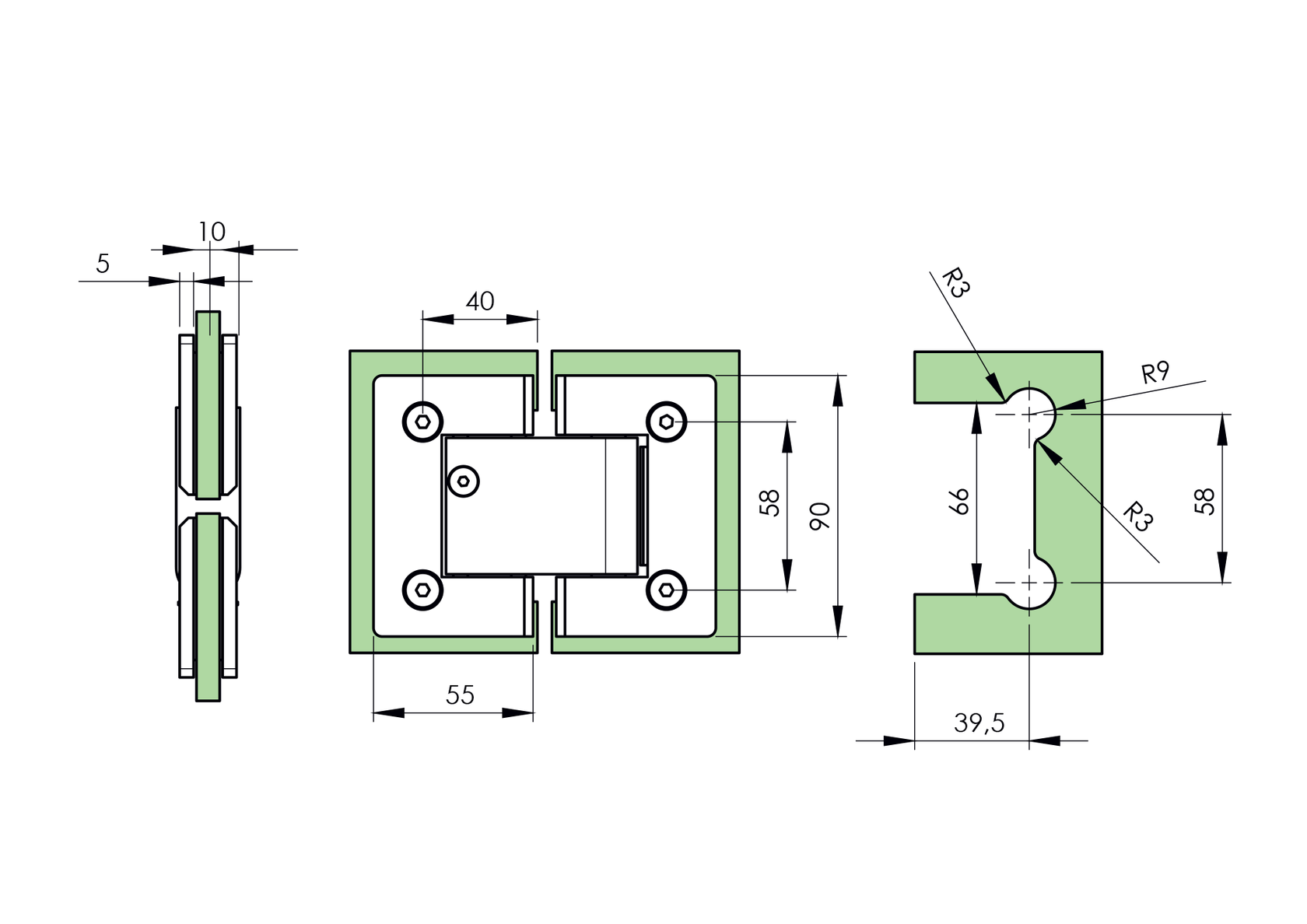

Parametric drawing
PDF
Manual – full version
