SOL-R52-4700-B

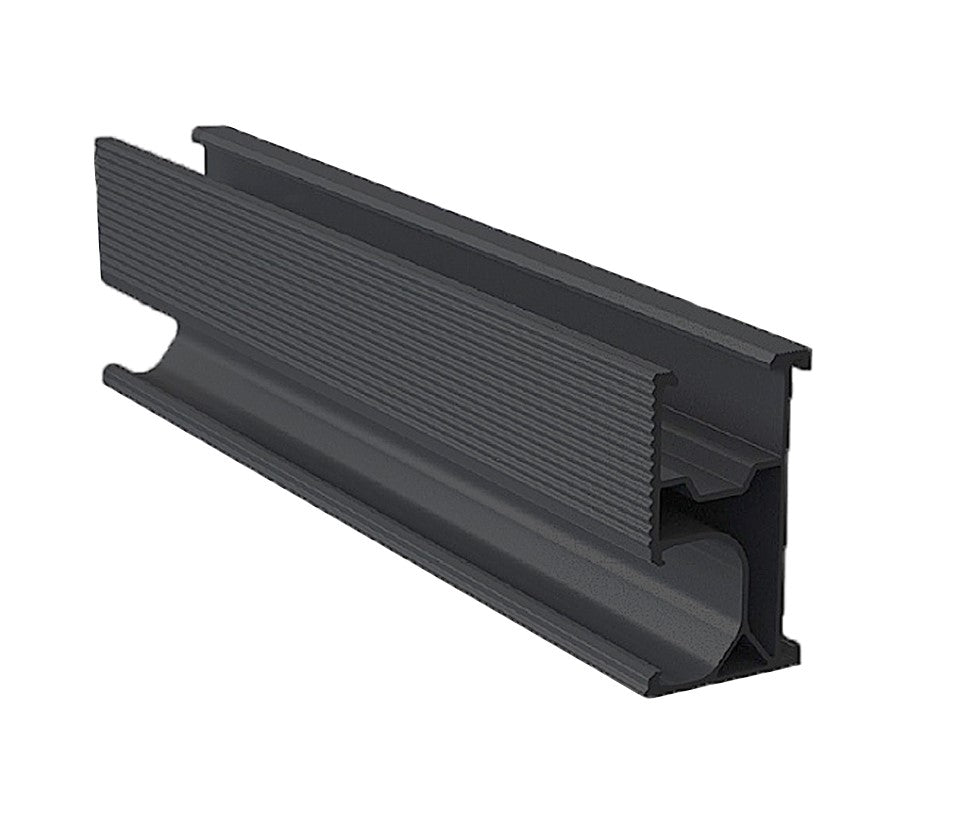

Mounting rail R52-4700mm-black

Material: Aluminium, Surface finish: Anodized, Color: Black

€29,33
without VAT
€35,49
with VAT
PCS
Stock availability
SK Krompachy > 25
SK Banská Bystrica 0
SK Bratislava R1 0

Contact

For more information, contact our sales representative:

marek.ciglar@umakov.sk
+421910743087
Description Parameters Download Assembly parts Catalog sheet Mandatory assortment Recommended products Alternative products In sets

Description

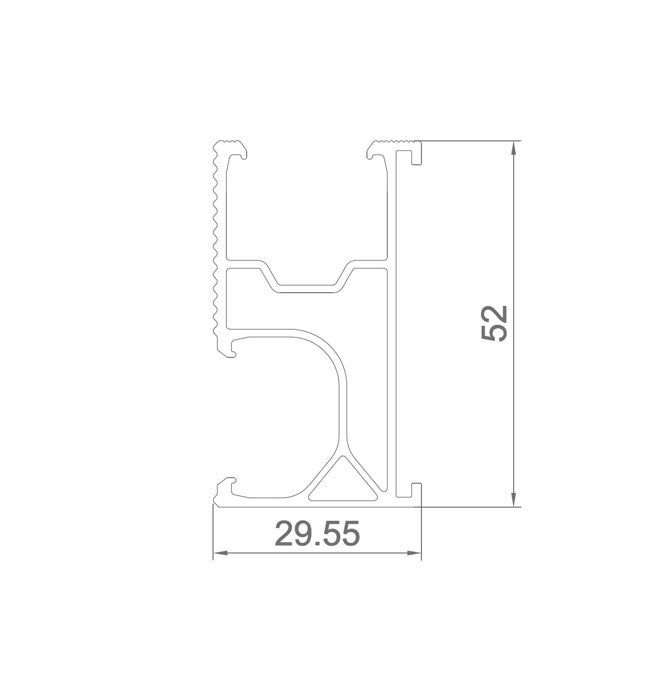

Aluminum support profile 30 x 52 mm, 5000 mm long, for mounting photovoltaic panels. The upper groove is used to attach panels with EIC/FEC/AEC clamps with M8 screws. The side groove is suitable for attaching mounting components with a prism and an M8 screw or a hammer T screw. The weight of 1m of black anodized profile is 0.7kg.

Parameters

Montážny hliníkový profil R52-4700 čierny
Material
Type of material
Aluminium
Surface finish
Surface finish of product
Anodized
Color
Vyberte si farebný odtieň.
Black
