AL/PR7-1500-N-E-SET1

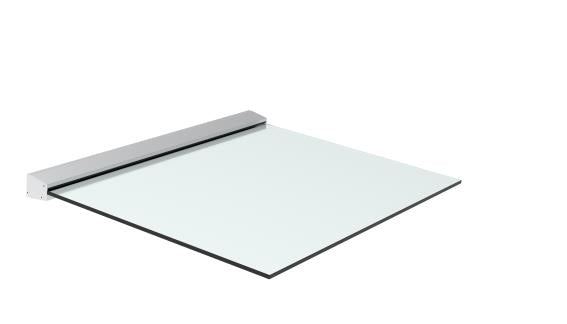

Canopy with aluminium channel profile

Material: Aluminium/EPDM/Plastic, Surface finish: Natural, Glass t: 12,76-13,52/16,76-17,52/20,76-21,52, L: 1500, Quality: VSG/TVG, Length: 1,5m, G/h kN: 1,5

€1.051,31
without VAT
€1.272,09
with VAT
SET
Stock availability
SK Krompachy - centrálny sklad 5
SK Banská Bystrica 0
SK Bratislava R1 0

Contact

For more information, contact our sales representative:

lubomir.petruska@umakov.sk
+421915093533 +393483490444
Description Parameters Download Assembly parts Catalog sheet Mandatory assortment Recommended products Alternative products In sets

Description

Glass canopy aluminum for glued safety glass 12.76-13.52 / 16.76-17.52 / 20.76-21.52 . The set includes an aluminum profile, plugs, gasket and necessary parts for the final assembly of the glass. Aluminum strip for glass canopy supplied without glass and anchoring material.

Parameters

Presklená strieška hliník profil
Material
Type of material
Aluminium/EPDM/Plastic
Surface finish
Surface finish of product
Natural
Glass t
Determines the thickness of the glass in mm the product is suitable for
12,76-13,52/16,76-17,52/20,76-21,52
L
1500
Length
DLZKA
1,5m
G/h kN
1,5
Quality
VSG/TVG

Download

STEP
STEP file
PDF

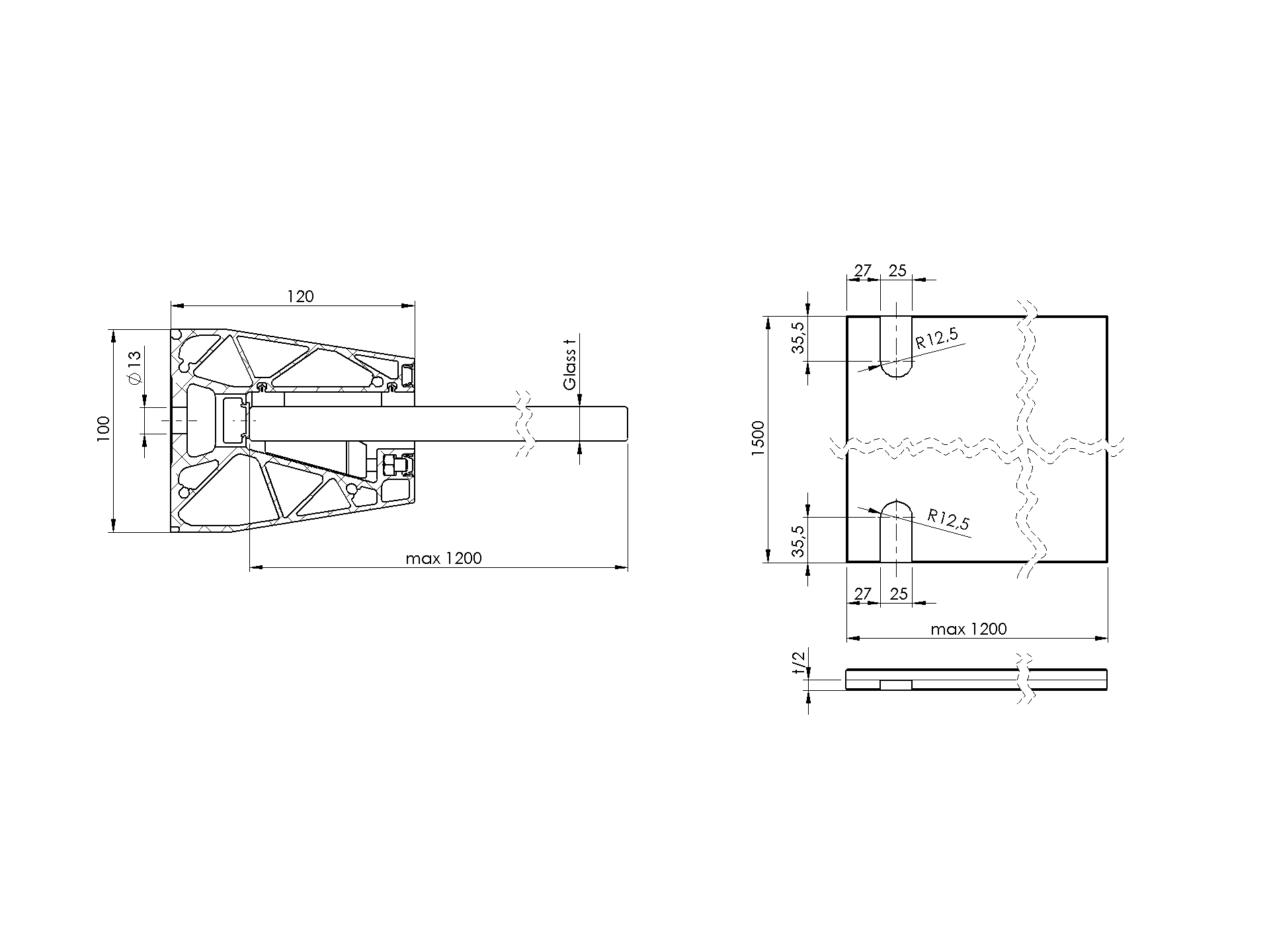

Parametric drawing
PDF
Instalation manual

Assembly parts

Kotviaci klin pre prístrešok PR7

Anchor wedge for shelter PR7 A19/PR7-1

7 pcs
Material
ABS
Surface finish
Natural
Difúzor pre LED profil, milk

Diffuser for LED profile A19/23x24-LED-PVC

1 pcs
Material
PVC
Surface finish
Milky
L
2500
Tesnenie skla pre prístrešok PR7

Glass inlay A19/PR7-3-013-03.0

1 pcs
Material
EPDM
Glass t
12,76-13,52
L
3000
Tesnenie skla pre prístrešok PR7

Glass inlay A19/PR7-3-017-03.0

1 pcs
Material
EPDM
Glass t
16,76-17,52
L
3000
Tesnenie skla pre prístrešok PR7

Glass inlay A19/PR7-3-021-03.0

1 pcs
Material
EPDM
Glass t
20,76-21,52
L
3000
Skrutka nastavovacia s plochým koncom, AISI304, M6x35

Hexagon socket set screw with flat point, AISI304, M6x35 A-DIN 913-A2 M6x35

7 pcs
Material
Stainless steel AISI 304
Surface finish
Natural
L
35
Matica šesťhranná štandardná, nerezová

Hexagon nut, stainless steel A-DIN 934 M6

7 pcs
Material
Stainless steel AISI 304
Surface finish
Natural
M
6
Skrutka s polguľatou hlavou s vnútor.šesťhranom, AISI304, M6x12

Hexagon socket button head screw, AISI304, M6x12 A-DIN 7380-A2 M6x12

6 pcs
Material
Stainless steel AISI 304
Surface finish
Natural
L
12
Skrutka s valcovou hlavou s vnútorným šesťhranom, AISI304, M6x20

Hexagon socket head cap screw, AISI304, M6x20 A-DIN 912-A2 M6x20

7 pcs
Material
Stainless steel AISI 304
L
20
M
6
Matica štvorhranná, nerezová

Square nut, stainless steel A-DIN 562 M6

7 pcs
Material
Stainless steel AISI 304
Surface finish
Natural
M
6
Kotviaci klin pre prístrešok PR7

Anchor wedge for shelter PR7 A19/PR7-2

2 pcs
Material
ABS
Surface finish
Natural
