AL/PR7-1500-R7016-SET2

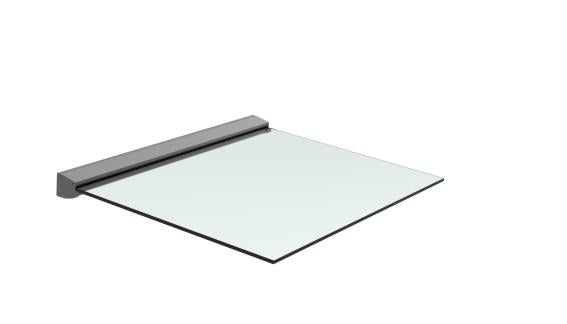

Canopy with aluminium channel profile

Material: Aluminium/EPDM/Plastic, Surface finish: Anthracite RAL 7016, Glass t: 12,76-13,52/16,76-17,52/20,76-21,52, L: 1500, Length: 1,5m, G/h kN: 1,5

€1.231,46
without VAT
€1.490,07
with VAT
SET
Stock availability
SK Krompachy - centrálny sklad 1
SK Banská Bystrica 0
SK Bratislava R1 0

Contact

For more information, contact our sales representative:

lubomir.petruska@umakov.sk
+421915093533 +393483490444
Description Parameters Download Assembly parts Catalog sheet Mandatory assortment Recommended products Alternative products In sets

Description

Aluminum glass canopy for glued safety glass 12.76-13.52 / 16.76-17.52 / 20.76-21.52. The set includes an aluminum profile in RAL7016, blanking caps in RAL7016, a cover in RAL7016, a gasket and the necessary parts for the final assembly of the glass. Aluminum strip for a glass canopy supplied without glass and anchoring material.

Parameters

Presklená strieška hliník profil
Material
Type of material
Aluminium/EPDM/Plastic
Surface finish
Surface finish of product
Anthracite RAL 7016
Glass t
Determines the thickness of the glass in mm the product is suitable for
12,76-13,52/16,76-17,52/20,76-21,52
L
1500
Length
DLZKA
1,5m
G/h kN
1,5

Download

PDF

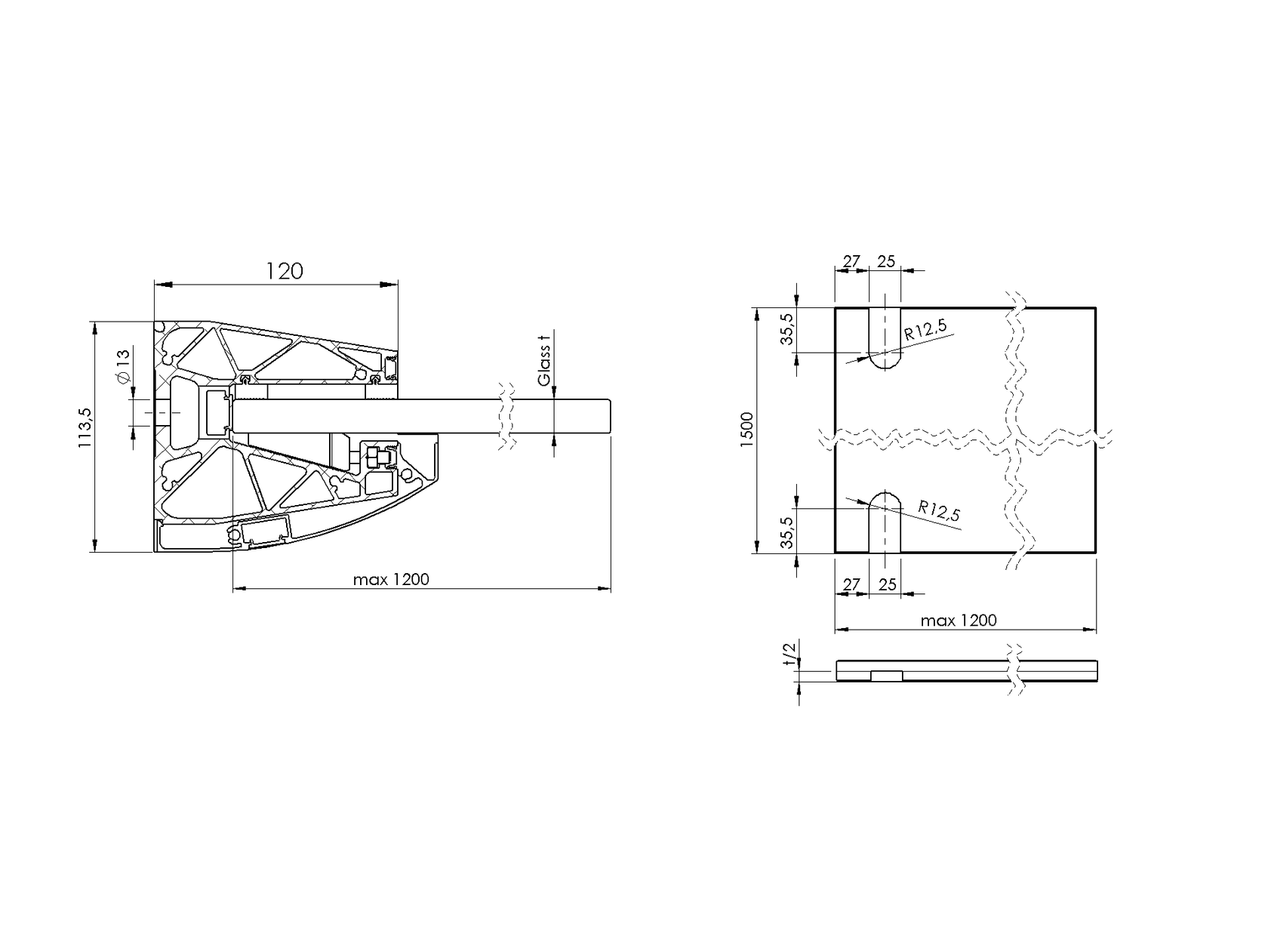

Parametric drawing
PDF
Instalation manual

Assembly parts

Kotviaci klin pre prístrešok PR7

Anchor wedge for shelter PR7 A19/PR7-1

7 pcs
Material
ABS
Surface finish
Natural
Difúzor pre LED profil, milk

Diffuser for LED profile A19/23x24-LED-PVC

2 pcs
Material
PVC
Surface finish
Milky
L
2500
Tesnenie skla pre prístrešok PR7

Glass inlay A19/PR7-3-013-03.0

1 pcs
Material
EPDM
Glass t
12,76-13,52
L
3000
Tesnenie skla pre prístrešok PR7

Glass inlay A19/PR7-3-017-03.0

1 pcs
Material
EPDM
Glass t
16,76-17,52
L
3000
Tesnenie skla pre prístrešok PR7

Glass inlay A19/PR7-3-021-03.0

1 pcs
Material
EPDM
Glass t
20,76-21,52
L
3000
Skrutka nastavovacia s plochým koncom, AISI304, M6x35

Hexagon socket set screw with flat point, AISI304, M6x35 A-DIN 913-A2 M6x35

7 pcs
Material
Stainless steel AISI 304
Surface finish
Natural
L
35
Matica šesťhranná štandardná, nerezová

Hexagon nut, stainless steel A-DIN 934 M6

7 pcs
Material
Stainless steel AISI 304
Surface finish
Natural
M
6
Kotviaci klin pre prístrešok PR7

Anchor wedge for shelter PR7 A19/PR7-2

2 pcs
Material
ABS
Surface finish
Natural
Skrutka s polguľatou hlavou s vnútor.šesťhranom, AISI304, M6x12

Hexagon socket button head screw, AISI304, M6x12 A-DIN 7380-A2 M6x12

6 pcs
Material
Stainless steel AISI 304
Surface finish
Natural
L
12
Skrutka s valcovou hlavou s vnútorným šesťhranom, AISI304, M6x20

Hexagon socket head cap screw, AISI304, M6x20 A-DIN 912-A2 M6x20

7 pcs
Material
Stainless steel AISI 304
L
20
M
6
Matica štvorhranná, nerezová

Square nut, stainless steel A-DIN 562 M6

7 pcs
Material
Stainless steel AISI 304
Surface finish
Natural
M
6
