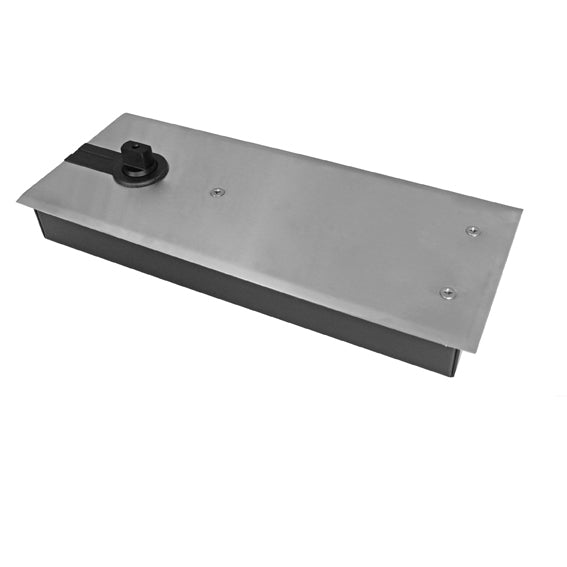

GS-304/ZP-822/S-B

Floor hydraulic spring box with locking 120kg

Material: Stainless steel AISI 304, Surface finish: Satined, Recommended weight of the wing: 120kg, Self closing mechanism: Yes, Function stop on angle: +-90°/0°

€72,94
without VAT
€88,26
with VAT
PCS
Stock availability
SK Krompachy - centrálny sklad > 10
SK Banská Bystrica 0
SK Bratislava R1 0

Contact

For more information, contact our sales representative:

lubomir.petruska@umakov.sk
+421915093533 +393483490444
Description Parameters Download Assembly parts Catalog sheet Mandatory assortment Recommended products Alternative products In sets

Description

Floor self-closing mechanism for door width up to 1300mm and up to 150 kg Open max 130°. fix at 90 degrees. Top stainless steel plate For glass 10-12mm Possibility to regulate the closing and closing speeds, double stroke.

Parameters

Samozatvárač podlahovy s aretaciou 120kg
Material
Type of material
Stainless steel AISI 304
Surface finish
Surface finish of product
Satined
Recommended weight of the wing
KRÍDLO
120kg
Self closing mechanism
Yes
Function stop on angle
+-90°/0°

Download

PDF

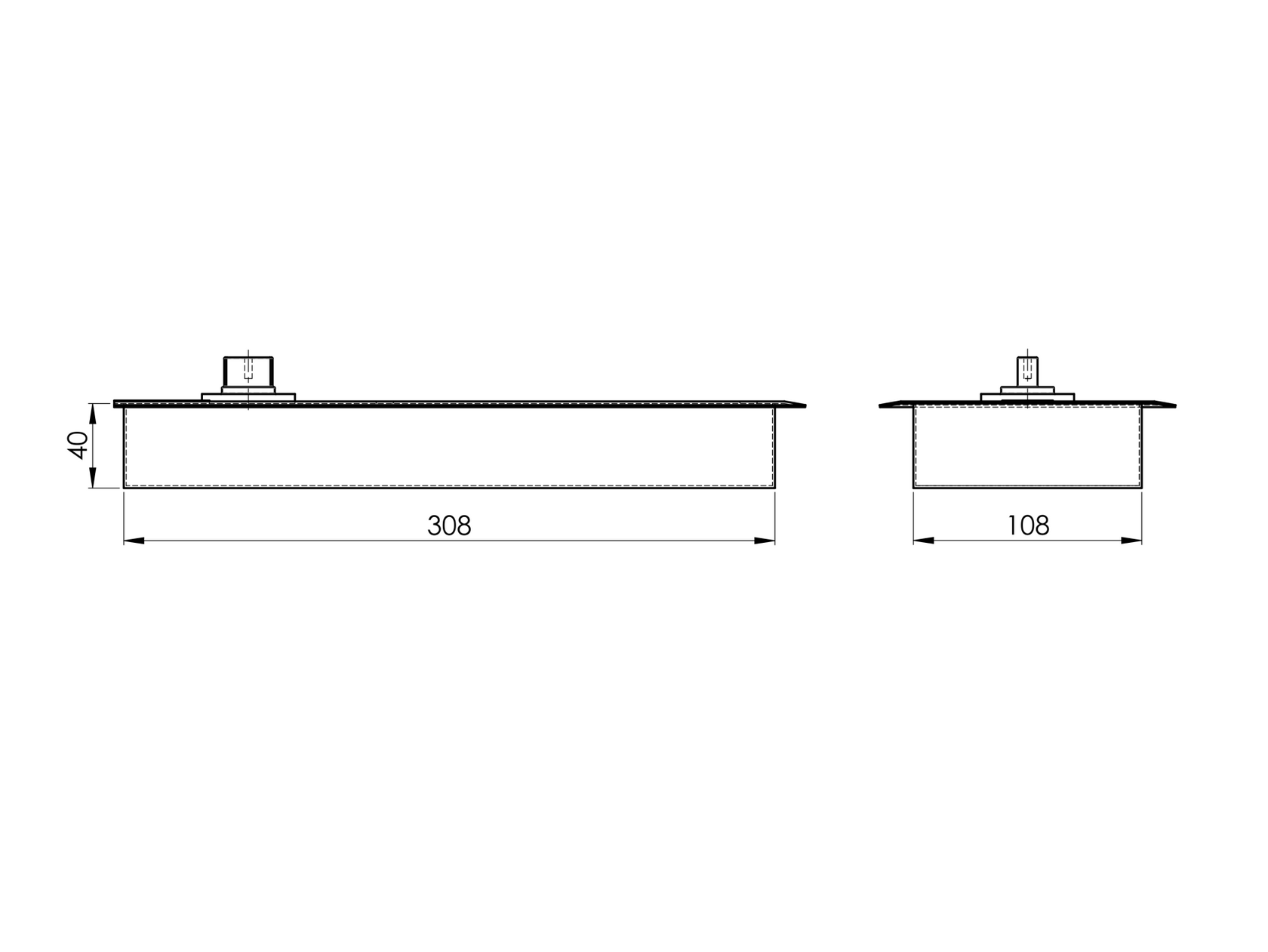

Parametric drawing
PDF
Document for download

Catalog

Mandatory assortment

Spodný pánt AISI 304 Spodný pánt AISI 304

Bottom patch fitting AISI 304 GS-304/ZP-800/S

Material
Stainless steel AISI 304
Surface finish
Satined
Glass t
10-12
Required products
€10,49
without VAT
€12,69 with VAT
In stock (74 units)
PCS
Required products
Related products
Technical info
Tŕň pre spodný pánt - do podlahy otočný s ložiskom

Bottom hinge with pivot to the floor GS-304/ZP-802/S-B

Material
Stainless steel AISI 304
Surface finish
Satined
€10,22
without VAT
€12,37 with VAT
In stock (57 units)
PCS
Samozatvárač podlahový s aretaciou 120 KG

Floor spring box with locking GS-304/ZP-821/S

Material
Stainless steel AISI 304
Surface finish
Satined
Recommended weight of the wing
160kg
Required products
€72,94
without VAT
€88,26 with VAT
Very low stock (1 unit)
PCS
Hydraulicky samozatvárač AISI304, 190x89x40mm Hydraulicky samozatvárač AISI304, 190x89x40mm

Bottom hinge with pivot to the floor AISI304, 190x GS-304/ZP-803/S

Material
Stainless steel AISI 304
Surface finish
Satined
Glass t
10-12
Out of stock
€116,48
without VAT
€140,94 with VAT
Backordered
PCS

Alternative products

Samozatvárač podlahový s aretaciou 120 KG

Floor spring box with locking GS-304/ZP-821/S

Material
Stainless steel AISI 304
Surface finish
Satined
Recommended weight of the wing
160kg
Required products
€72,94
without VAT
€88,26 with VAT
Very low stock (1 unit)
PCS
Alternatives
Required products
Technical info
Samozatvárač podlahovy s aretaciou 120kg

Floor hydraulic spring box with locking 120kg GS-304/ZP-822/S-B

Material
Stainless steel AISI 304
Surface finish
Satined
Recommended weight of the wing
120kg
Required products
€72,94
without VAT
€88,26 with VAT
In stock (65 units)
PCS
Spodný pánt AISI 304 Spodný pánt AISI 304

Bottom patch fitting AISI 304 GS-304/ZP-800/S

Material
Stainless steel AISI 304
Surface finish
Satined
Glass t
10-12
Required products
€10,49
without VAT
€12,69 with VAT
In stock (74 units)
PCS
Samozatvárač podlahovy s aretaciou 120kg
umakov-dev

Floor hydraulic spring box with locking 120kg

€72,94
Floor self-closing mechanism for door width up to 1300mm and up to 150 kg Open max 130°. fix at 90 degrees. Top stainless steel plate For glass 10-12mm Possibility to regulate the closing and closing speeds, double stroke.
